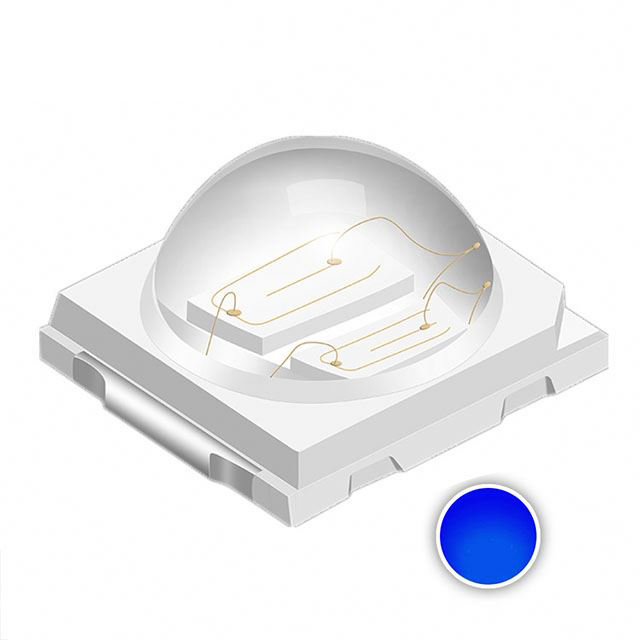

Name:	1W 460-475 Blue Light 3030 SMD LED
Chiip Material:	InGaN
Color:	Blue
Luminous Flux:	30-40lm
Color Temperature:	460-475nm
Voltage:	3.0-3.2V
Current:	350mA
Warranty:	2 Years
Brand Name:	IDOO
Certification:	CE, RoHS, FCC

Product Description

Quick Details

1W 3030 SMD LED

Power	Color	CCT/ Wavelength	Voltage	Current	Lumen	CRI
1W	White	4000-4500K 5500-6000K 6000-6500K	2.8-3.4V	350mA	130-150LM	70
1W	White	4000-4500K 5500-6000K 6000-6500K	5.6-6.8V	175mA	130-150LM	70
1W	Red	620-630nm	2.0-2.6V	400mA	25-35LM	--
1W	Green	460-470nm	2.8-3.4V	350mA	70-80LM	--
1W	Blue	460-470nm	2.8-3.4V	350mA	20-30LM	--
1W	(Phosphor) Red	655-660nm	2.8-3.4V	350mA	15-25LM	--
1W	(Phosphor) Green	555-560nm	2.8-3.4V	350mA	170-180LM	--
1W	(Phosphor) Blue	460-465nm	2.8-3.4V	350mA	50-60LM	--

Product feature :

1.LED using the high quality encapsulation material with
copper stent , Doublink Run 99.99% gold wire ,Taiwan and American chip brand (Epistar ,Epileds , Bridgelux),Dow corning resin, Intematix phosphor.
2. high reliable ,high lighting effect .
3. High color rendition,CRI>80,90,95 can choose.
4. products supplies 100% full power.
5. Low heating generation to reduce electricity consumption .
3. Great reducing carbon emission.
4. Minimizing drastic climate change.
5. Great reducing maintenance cost.
6. Long lifespan.
7. Instant start, no flashing .
